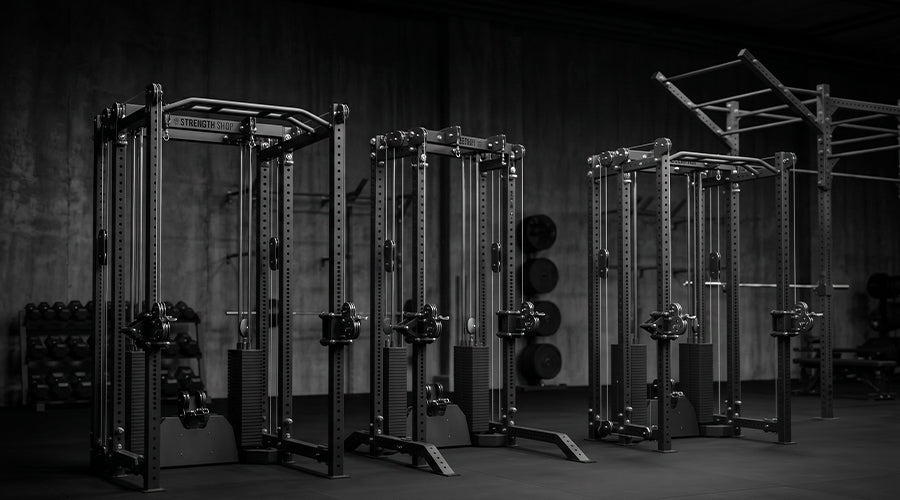

The Riot Functional Trainer: One Cable System, Every Training Environment
Most cable machines are fixed in one place, fixed in one configuration, and fixed in what they can do. You bolt them to the floor, they stay there, and the exercises they allow are defined by where the pulleys are and what the frame permits. That's fine for a dedicated commercial gym with plenty of space and a single purpose. It's not fine for a facility that needs to do more with less floor space — or for a serious training setup where the rack is already the center piece and the cable system should work with it, not next to it.
The Riot Functional Trainer is built around a different logic. It's a four-point cable training system that can stand alone, mount to a wall, or integrate directly into a Riot MRR rack — turning a single station into a complete strength training environment that covers barbell work, cable work, and everything in between.
This is how it works, what it can do, and how to train on it.
The Hardware: What's Actually in This Machine
Four Independent Cable Pull Points
The Functional Trainer has four independent cable stations: two adjustable trolleys that move to multiple height positions, two dedicated lat pulldown stations, and two low row stations. This means multiple athletes can train simultaneously, and it means the exercise variety available from a single piece of equipment is genuinely broad.
Each pulley rotates freely through 360° — meaning the cable follows natural movement patterns in any plane rather than forcing the body to adapt to a fixed line of pull. For functional movements, rotational work, and anything that requires the cable to move with the exercise rather than against it, this matters.
The 2:1 Pulley Ratio
This is the technical detail that separates quality cable systems from budget ones, and it's worth understanding.
A traditional 1:1 cable system means the weight stack moves the same distance as the cable — pull the cable 50cm, the stack moves 50cm. A 2:1 ratio means the cable travels twice as far as the stack moves. The practical result: longer cable travel, smoother resistance through the full range of motion, and significantly reduced inertia at the start of the movement.
That last point is what you feel in practice. On a 1:1 system, the beginning of a rep — especially with heavier loads — has a jerky, abrupt feel as the stack lifts off. On a 2:1 system, the resistance builds more smoothly from the start. For hypertrophy training where control and time under tension matter, and for technical movements that require consistency through the range, the smoother resistance curve is a real advantage.
Dual 120kg Weight Stacks — Upgradeable to 150kg
Two independent stacks, 120kg each, in 5kg increments. The increments matter — 5kg jumps are fine for large compound movements but too coarse for isolation work. At 5kg per increment, both are covered adequately. For facilities that need more load, optional +30kg extensions bring each stack to 150kg.
Frame and Materials
- 75 × 75 × 3mm mild steel uprights — the same structural spec used in the Riot MRR rack range, which is why the integration works
- Aluminium pulleys — lighter than steel, resist corrosion, run smoothly under load
- Stainless steel guide rails — consistent cable tracking over years of daily use
- Cast-iron weight stacks — denser than rubber-coated alternatives, more consistent resistance feel
The frame also includes an integrated footplate for seated rowing positions, and an optional leg and hip roller attachment for lat pulldown support — which can also be used on compatible racks for hip thrusts and split squats.
The Modularity: Why the Rack Integration Changes Everything
This is where the Riot Functional Trainer separates itself from every standalone cable machine on the market.
Built to Riot MRR Dimensions
The Functional Trainer is engineered to the exact structural dimensions of the Riot MRR rack system. The upright specs match. The connection points align. This isn't a cable machine that happens to fit next to a rack — it's a cable system designed to become part of the rack itself.
Rack-Mounted Integration: 2100 and 2300 Height Options
For athletes and facilities running Riot MRR racks at 2100mm or 2300mm height, the Functional Trainer mounts directly to the rack uprights. Choose your depth — 425mm, 725mm, or 1075mm — depending on available space and how the station fits into the wider setup.
The result: one station that handles squats, bench press, overhead press, and all barbell compound work — plus the full cable exercise menu — without taking up separate floor space for each system. The weight stack is offset within the frame specifically to ensure a bench can roll into position and barbell movements are not obstructed by the cable system. Rack and cable coexist in the same footprint.
For commercial gyms and X-Fit facilities building out training floors, this means significantly more training capacity per square metre. For a home gym or private facility, it means a complete training environment that doesn't require a separate room for the cable machine.
Setup Options
Beyond rack integration, the Functional Trainer covers multiple installation configurations:
Wall-Backed Freestanding — front long feet (included) stabilise the front, the wall supports the rear. Space-efficient, clean, works in any room with a solid wall behind it.
Fully Freestanding — front and rear feet (both included) provide complete independent stability. No wall required. Works anywhere.
Wall-Mounted, Top-Braced — minimal footprint, fixed to the wall with 275mm crossmembers at the top. The cleanest installation aesthetically, smallest floor presence.
Rack-Integrated — mounted directly to Riot MRR uprights at 2100 or 2300 height. The most space-efficient solution for anyone already running the Riot rack system.
Exercise Library: What the Functional Trainer Covers
Upper Body Pull
| Exercise | Cable Position | Notes |
|---|---|---|
| Lat Pulldown | High fixed station | Standard and wide grip; close grip with attachment |
| Seated Cable Row | Low fixed station | Neutral, wide, or underhand grip |
| Single-Arm Cable Row | Adjustable trolley | Unilateral; excellent for back symmetry |
| Face Pull | High trolley | External rotation, rear delt and upper back |
| Cable Straight-Arm Pulldown | High trolley | Lat isolation; keep arms straight throughout |
| Banded-Feel Pull-Apart | High trolley | Low weight, high rep; shoulder health work |
Upper Body Push
| Exercise | Cable Position | Notes |
|---|---|---|
| Cable Crossover | High trolley | Both sides simultaneously |
| Low-to-High Cable Fly | Low trolley | Emphasises upper pec |
| High-to-Low Cable Fly | High trolley | Emphasises lower pec |
| Triceps Pushdown | High trolley | Rope or bar attachment |
| Overhead Triceps Extension | High or low trolley | Full long-head tricep stretch |
| Cable Chest Press (single arm) | Mid trolley | Unilateral press; good for pec isolation |
Biceps and Forearms
| Exercise | Cable Position | Notes |
|---|---|---|
| Cable Biceps Curl | Low trolley | Both arms or alternating |
| Single-Arm Cable Curl | Low trolley | Full supination possible throughout |
| Cable Hammer Curl | Low trolley | Neutral grip; brachialis and brachioradialis |
| Reverse Curl | Low trolley | Forearm development |
Core and Rotational
| Exercise | Cable Position | Notes |
|---|---|---|
| Cable Woodchopper | High to low trolley | Rotational power; works in all planes |
| Reverse Woodchopper | Low to high trolley | Opposite rotation pattern |
| Pallof Press | Mid trolley | Anti-rotation core stability |
| Cable Crunch | High trolley | Kneeling; excellent weighted core exercise |
| Rotational Cable Row | Mid trolley | Athletic movement pattern |
Lower Body and Functional
| Exercise | Cable Position | Notes |
|---|---|---|
| Cable Pull-Through | Low trolley | Hip hinge pattern; glute and hamstring |
| Cable Kickback | Low trolley | Glute isolation; kneeling or standing |
| Cable Lunge | Low trolley | Forward or reverse; adds resistance angle |
| Cable Hip Abduction | Low trolley | Lateral glute work |
| Single-Leg Romanian Deadlift | Low trolley | Unilateral posterior chain |
| Cable Squat | Low trolley | Goblet position; posture and depth cue tool |
Training Plan: The Rack-Integrated Cable Station Programme
This is a four-day programme designed specifically for athletes training on a Riot MRR rack with integrated Functional Trainer. It combines barbell compound lifts with cable accessory and isolation work — the combination the integrated setup is built for.
Day 1 — Push: Barbell + Cable Upper Body
| Exercise | Sets | Reps | Station |
|---|---|---|---|
| Bench Press | 4 | 4–6 | Rack / barbell |
| Overhead Press | 3 | 6–8 | Rack / barbell |
| High-to-Low Cable Fly | 3 | 12–15 | High trolley |
| Cable Triceps Pushdown | 3 | 12–15 | High trolley |
| Overhead Cable Triceps Extension | 2 | 12–15 | High trolley |
| Face Pull | 3 | 20 | High trolley |
The face pull is not optional. Do it every push session. Shoulder health over time depends on it.
Day 2 — Pull: Barbell + Cable Back and Biceps
| Exercise | Sets | Reps | Station |
|---|---|---|---|
| Deadlift | 4 | 3–5 | Rack / barbell |
| Barbell Row | 3 | 6–8 | Barbell |
| Lat Pulldown | 3 | 10–12 | High fixed station |
| Seated Cable Row | 3 | 10–12 | Low fixed station |
| Single-Arm Cable Row | 3 | 10–12/side | Adjustable trolley |
| Cable Biceps Curl | 3 | 12–15 | Low trolley |
Day 3 — Lower Body: Barbell + Cable Posterior Chain
| Exercise | Sets | Reps | Station |
|---|---|---|---|
| Back Squat | 4 | 4–6 | Rack / barbell |
| Romanian Deadlift | 3 | 8–10 | Barbell |
| Cable Pull-Through | 3 | 15–20 | Low trolley |
| Cable Lunge | 3 | 10–12/side | Low trolley |
| Single-Leg Cable Kickback | 3 | 12–15/side | Low trolley |
| Cable Woodchopper | 3 | 12/side | High to low trolley |
Day 4 — Full Body: Functional + Isolation
| Exercise | Sets | Reps | Station |
|---|---|---|---|
| Front Squat or Pause Squat | 3 | 4–6 | Rack / barbell |
| Cable Crossover | 3 | 12–15 | High trolleys both sides |
| Pallof Press | 3 | 10/side | Mid trolley |
| Reverse Woodchopper | 3 | 12/side | Low to high trolley |
| Cable Hammer Curl | 3 | 12–15 | Low trolley |
| Face Pull | 3 | 20 | High trolley |
Programming notes:
Run this four-day plan with one or two rest days distributed across the week — e.g. Mon/Tue/Thu/Fri or Mon/Wed/Fri/Sat. The cable exercises are accessory work and should feel controlled, not maximal — weight selection should allow the top of the rep range to be reached with clean form. Progress the barbell lifts with standard progressive overload (add weight when all reps are clean); progress cable work by adding a rep or adding a small weight increment when the current weight becomes straightforward.
Who This Is For
Commercial gyms and strength facilities building a versatile training floor that handles strength, hypertrophy, and functional work without separate cable machines taking up separate floor space.
X-Fit and functional fitness boxes that need a cable system capable of athletic, movement-based training — not just bodybuilding isolation work.
Serious home gyms where the Riot MRR rack is already the foundation and the cable system should extend what that rack can do rather than sit separately beside it.
Athletes who want barbell strength and cable variety in one station — because the two types of training are not competing priorities, they're complementary ones.
The Short Version
Four cable points. Dual 120kg stacks. 2:1 pulley ratio. 360° rotation. Full rack integration with Riot MRR at 2100 and 2300 height. Multiple setup configurations. One machine that covers isolation, functional, hypertrophy, and athletic conditioning — and integrates directly into the rack you're already training on.
