Riot MRR | Folding Crossmembers for MRR Uprights

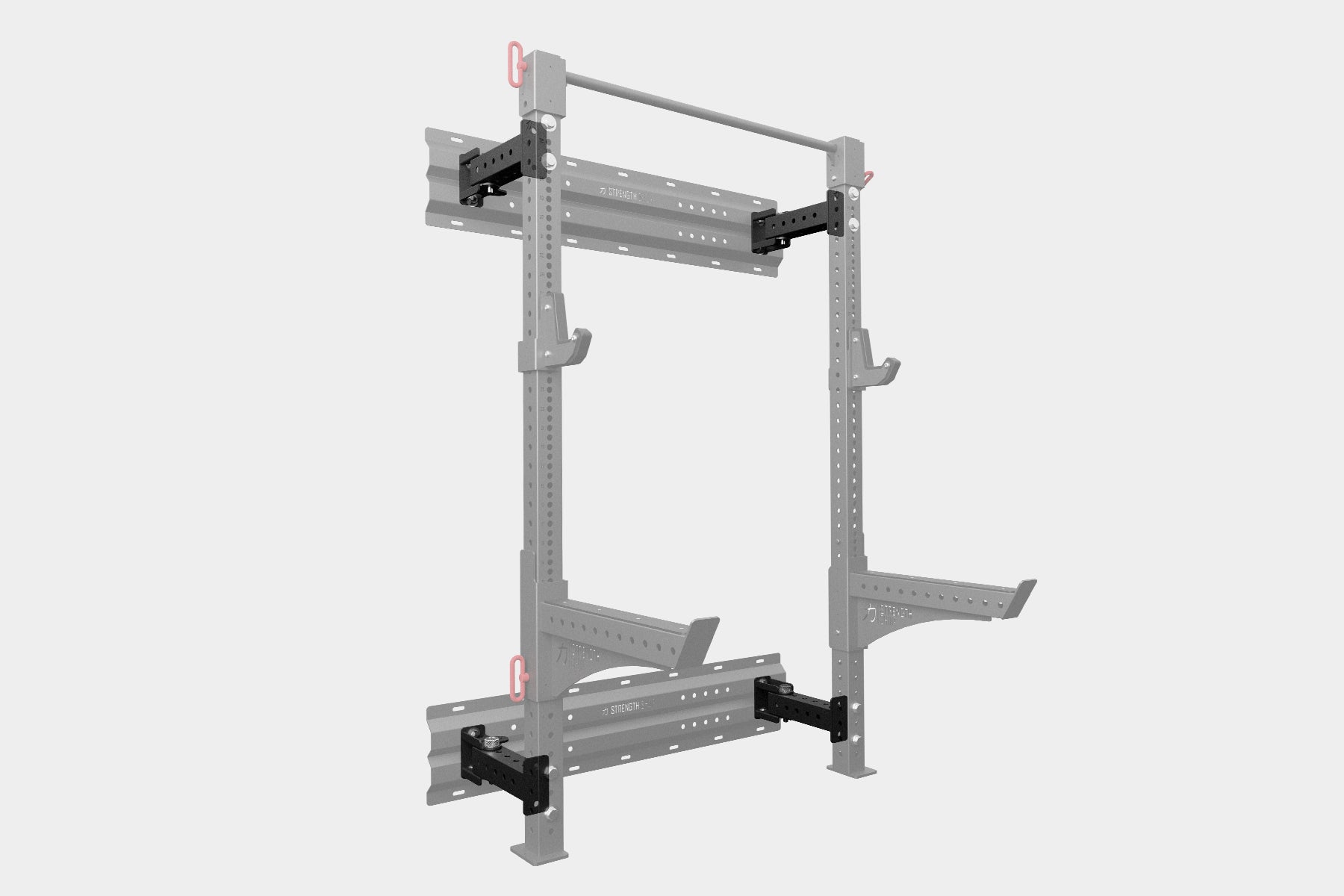

Your rack. Your wall. Zero wasted space. The Riot MRR Folding Crossmembers mount to your MRR Uprights and transform them into a fully functional wall-mounted rack — one that disappears when you're done with it.
When it's time to train, swing the crossmembers out and lock them in with the mag pin. When you're finished, fold them back flat against the wall. The whole system is built from 75 x 75 x 3 mm box section steel with 6 mm end plates — rigid under load, minimal when folded. Pair them with the MRR Pull Up Bar and you have a complete training station that takes up almost no permanent space.
Sold as a pair. Designed for Riot MRR Uprights.
Specifications
| Specification | Detail |
| SKU | FOLDING-CM-PAIR |
| Sold as | Pair |

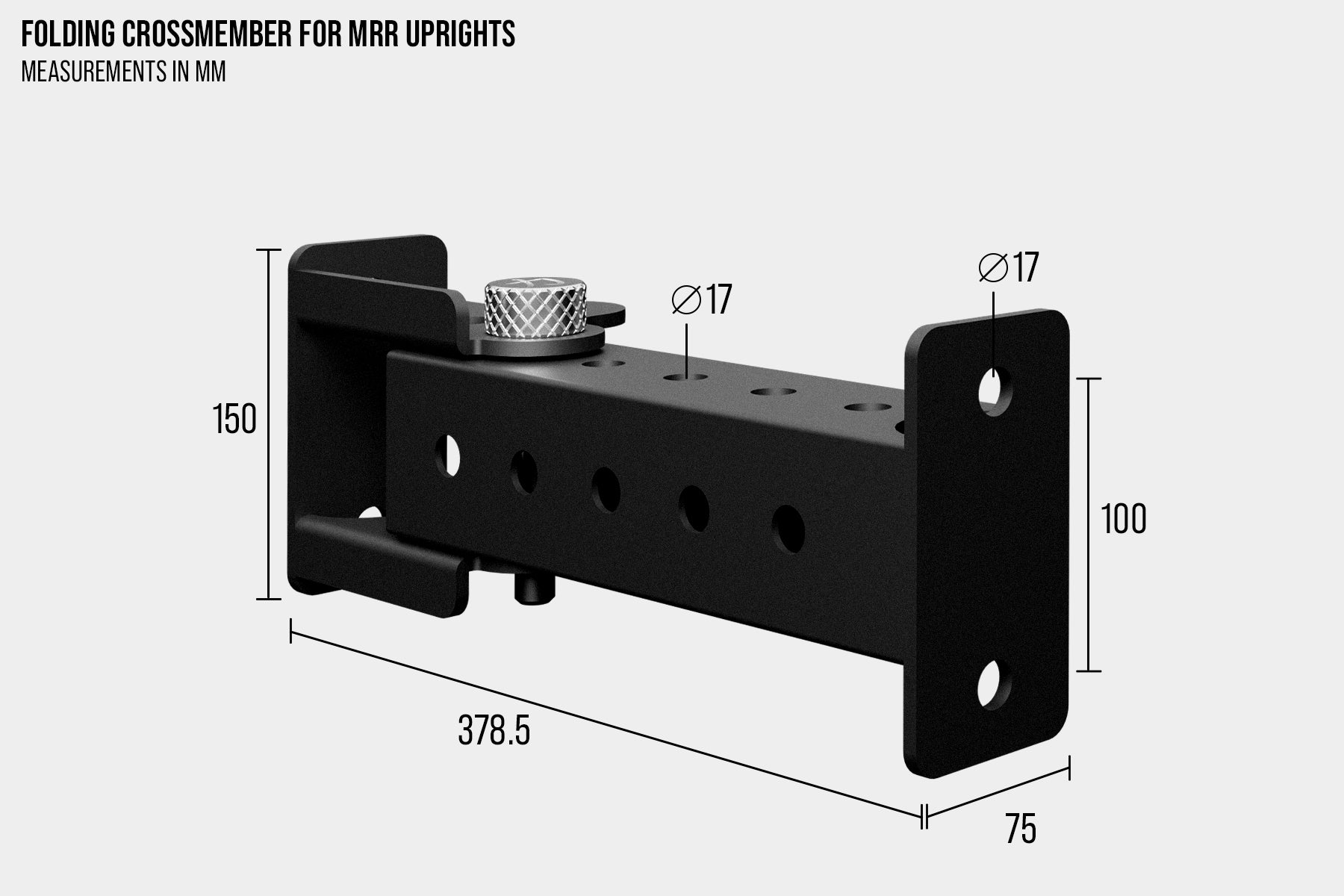

| Assembled dimensions (each) | 378.5 x 150 x 113.5 mm |
| Box section | 75 x 75 x 3 mm |
| End plate thickness | 6 mm |
| Mounting hole diameter | Ø17 mm |
| Mounting hole spacing (vertical) | 100 mm |
| Mount plate height | 150 mm |
| Locking mechanism | Mag pin |
| Folding direction | Lateral |
| Material | Mild steel, black powder coat |
| Compatibility | Riot MRR Uprights |
FAQ
What exactly do the Folding Crossmembers do?
They turn a pair of Riot MRR Uprights into a fully functional wall-mounted rack that folds flat against the wall when not in use. When you're done training, the crossmembers fold laterally and lock in place with the mag pin — the whole setup sits virtually flush with the uprights. No dismantling, no storing parts separately, just fold and go.
How does the folding and locking work?
Each crossmember folds laterally — sideways rather than swinging down — and is secured in both the open and folded position by a mag pin. Pull the pin, fold, drop it back in. It takes a few seconds and no tools.
What can I attach to them?

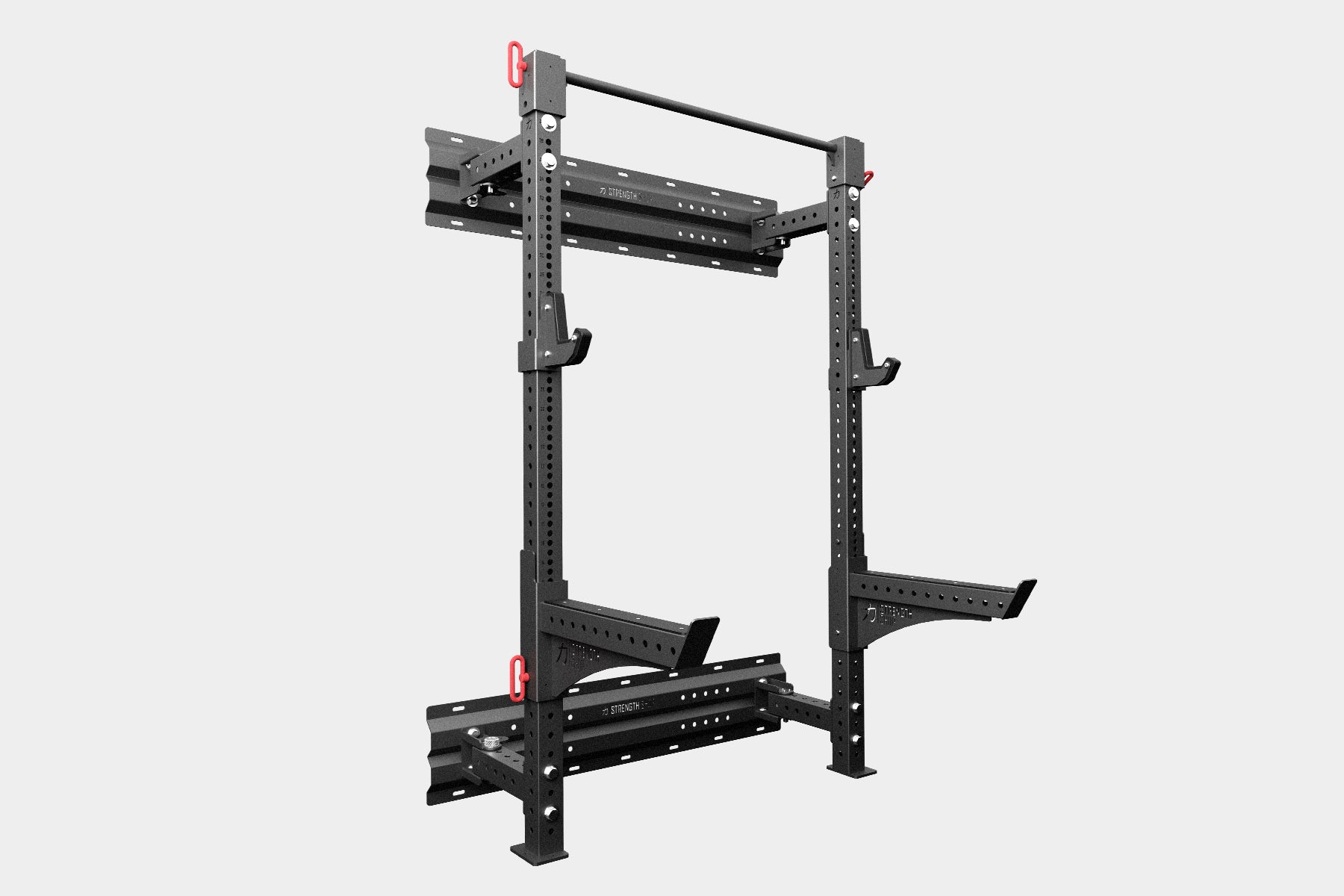

The crossmembers are built to work with the full MRR attachment range. The most natural pairing is the MRR Pull Up Bar, which slots in to turn the setup into a full wall-mounted pull-up and training station. Other MRR attachments can be used depending on your setup.
Are they sold as a pair?
Yes — the Folding Crossmembers are sold as a pair, one for each upright.
What uprights do they fit?
The Folding Crossmembers are designed specifically for Riot MRR Uprights. The end plates feature Ø17 mm holes on a 100 mm vertical spacing, matching the MRR upright hole pattern.

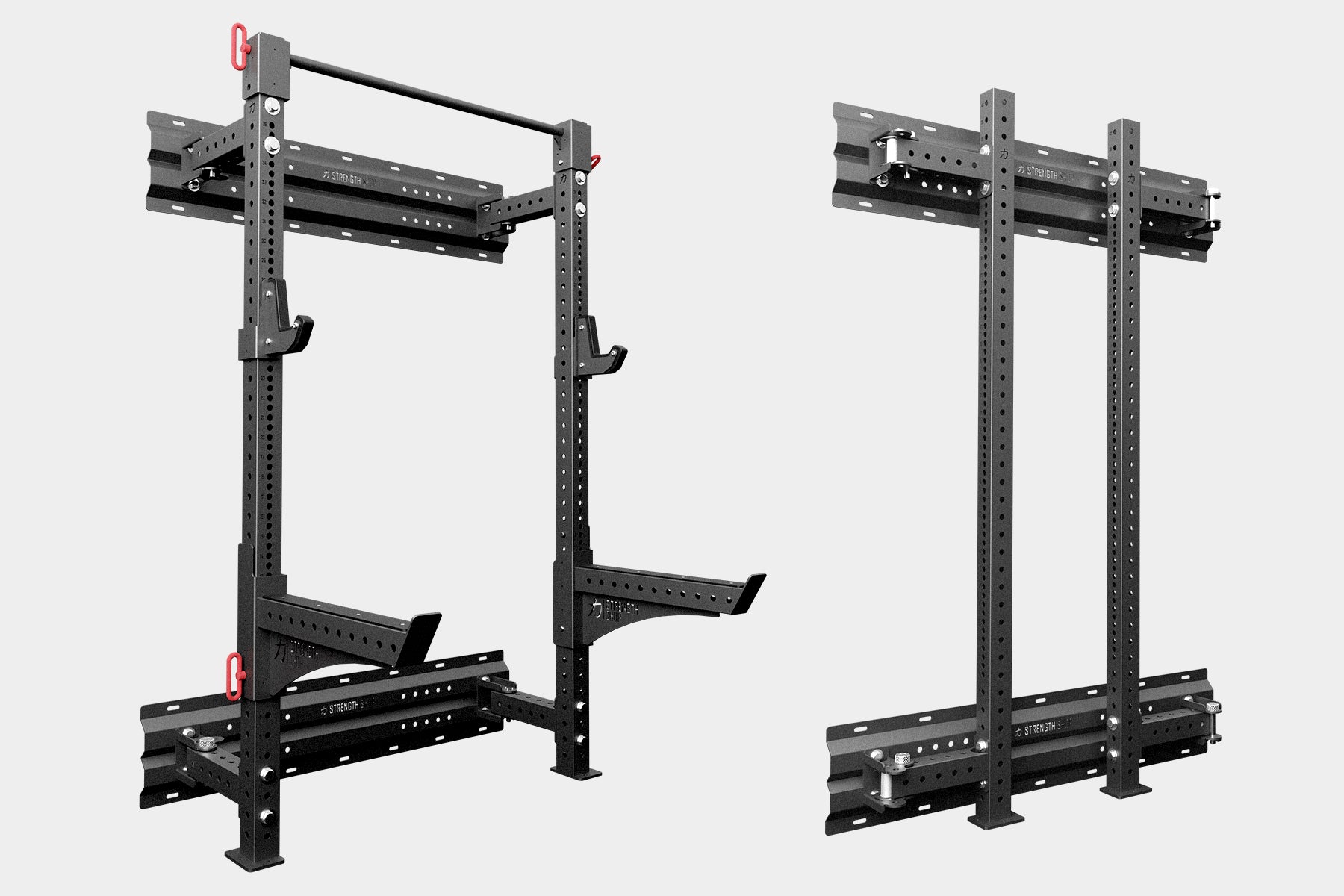

How much space do they take up when folded?
Very little. Folded flat, the crossmembers sit laterally alongside the uprights, making the whole setup as low-profile as possible against the wall — ideal for garages, home gyms, or any space where floor area matters.
